Fluke 438-II Hire
£325.00 per week
Next day delivery is available when you hire the Fluke 438-II
Description

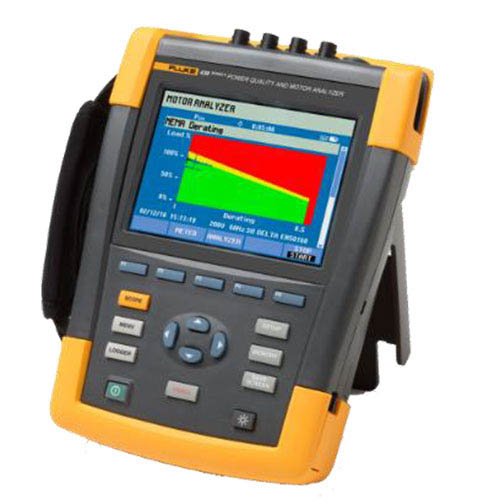

Fluke 438-II Hire – Power Quality and Motor Analyser
The Fluke 438-II Power Quality and Motor Analyser is a sophisticated and user-friendly instrument designed to monitor, record, and analyse power quality and motor performance in various electrical installations. Ideal for energy management professionals, facility managers, and electrical engineers, the Fluke 438-II enables accurate assessments of power quality and motor efficiency, helping to identify potential issues and optimise overall system performance.
Key Features
- Comprehensive Data Collection: The Fluke 438-II captures a wide range of electrical parameters, including voltage, current, power, energy, harmonics, and flicker, providing a complete overview of power quality and consumption.
- Motor Performance Analysis: The analyser offers advanced motor performance measurement capabilities, such as torque, speed, and mechanical power, enabling a comprehensive understanding of motor efficiency and performance.
- Simultaneous Three-Phase Monitoring: The Fluke 438-II is capable of simultaneously monitoring three-phase electrical systems, allowing for in-depth analysis of complex installations.
- Intuitive Software: The Fluke PowerLog software simplifies data analysis and reporting, making it easy to visualise and understand power quality and motor performance patterns.
- Compact and Non-Intrusive: The Fluke 438-II’s compact design and flexible mounting options enable easy installation in electrical cabinets without disrupting ongoing operations.
- Brings key parameters like speed, torque and mechanical power and calculates motor efficiency without mechanical sensors
- Includes full power quality and electrical energy analyzer
- Highest safety rating in industry; 1000 V CAT III / 600 V CAT IV
At Accudata Ltd, we offer Fluke 438-II hire, ensuring our customers have access to top-quality equipment for their power quality and motor performance management needs. Don’t forget that we provide next day delivery on all of our hire products, so you can obtain the tools you need promptly. For more information or to discuss your requirements, please contact us.
Download the Fluke 438-II Specification Document
Amps (accuracy excluding clamp accuracy)
| Drive Measurement Details | |
| Motor Type | 3 phase asynchronous (induction) |
| Power Source | Variable Frequency Drive |
| Motor Frequency Range | 40Hz to 70Hz |
| Over/Under Voltage from Nominal V/f Curve (%) | -15% to +15% |
| Carrier Frequency Range | 2.5kHz–20kHz |
| Variable speed drive technology that is covered by the 438-II | |
| Inverter Type | VSI only (voltage controlled) * |
| Control Method | V/f control, open-loop vector, closed loop vector, drives with encoders. |
| Frequency | 40 to 70 Hz |
| * VSI drives are the most common drives. The alternative CSI drives are used in higher power applications. | |
| Variable speed drive technology NOT covered by the 438-II | |
| Inverter Type | CSI (current source inverter) |
| Motors type | Synchronous (DC, stepper, permanent magnet etc.) |
| Motor Frequency | <40 and >70 Hz |
Mechanical Specifications
| Motor measurement | Range | Resolution | Accuracy | Default limit |
|---|---|---|---|---|
| Mechanical motor Power | 0.7 kW to 746 kW 1 hp to 1000 hp | 0.1 kW 0.1 hp | ± 3 %1 ± 3 %1 | 100 % = rated power 100 % = rated power |
| Torque | 0 Nm to 10 000 Nm 0 lb ft to 10 000 lb ft | 0.1 Nm 0.1 lb ft | ± 5 %1 ± 5 %1 | 100 % = rated torque 100 % = rated torque |
| rpm | 0 rpm to 3600 rpm | 1 rpm | ± 3 %1 | 100 % = rated rpm |
| Efficiency | 0 % to 100 % | 0.10 % | ± 3 %1 | NA |
| Unbalance (NEMA) | 0 % to 100 % | 0.10 % | ± 0.15 % | 5% |
| Harmonics Voltage Factor (NEMA) | 0 to 0.20 | 0.1 | ± 1.5 % | 0.15 |
| Unbalance Derating Factor | 0.7 to 1.0 | 0.1 | indicative | NA |
| Harmonics Derating Factor | 0.7 to 1.0 | 0.1 | indicative | NA |
| Total NEMA Derating Factor | 0.5 to 1.0 | 0.1 | indicative | NA |
1Add 5 % error when selecting Motor design type Other
Specification valid for Motor Power > 30 % of rated power
Specification valid at stable operating temperature. Run the motor for at least 1 hour at full load
(2-3 hours if the motor is 50 HP or higher) to obtain stable temperature.
Notes:
• Supports motor design types NEMA A, B, C, D & E and IEC type H and N.
• Rated torque is calculated from rated power and rated speed.
• Update rate of Motor Measurements
